HD-SDi / 960h DVR

$1,699.00$5,899.00

  • Auto-detect
  • HD-SDi
  • 960H Analog
  • D1 Camera recording
Clear

This Amazing DVR Auto-Senses Any Camera You Bring To It
Any Analog – Any HD-SDI Digital – Any Resolutions
Every Channel

The amazing Auto-HD DVR from Rugged Cams is the only DVR that we know of that makes every camera input a Universal, Auto-Sensing, Auto-Configuring Channel.

The Auto-HD is now available in 8 or 16 channel models, and can be ordered in 3 different DVR chassis. So whether you need 2 archive hard drives, 3 or 6 drives onboard, or unlimited storage with a RAID Storage solution, we have a model to fit your needs and your budget.

Of course, we didn’t stop there, we stuffed every feature and option into this amazing new series of DVR’s, and then we decided to offer the series at prices that are not only affordable for any budget, but at a price that is hundreds lower than any Megapixel DVR we have ever offered.

You will never outgrow this DVR. Even if you start out with all analog cameras, you can switch at anytime to Digital Megapixel – using the same DVR, the same camera wiring and the same camera power. So in the future, when you decide to upgrade to Megapixel Video, it will be as simple as switching out a camera. Low Cost – High Tech!

Like all of the Rugged Cams DVR’s these rugged, tough DVR’s can be completely controlled via any computer anywhere in the world, or by your Smart Phone, Tablet, iPad or other device. Easily view all of your cameras, review archived footage, or even change any setting or feature – from anywhere in the world that you can get Wi-Fi or cell coverage.

The Auto-HD Series also gives you real-time recording on every channel – another feature that is rare to find in a DVR. Also, every Auto-HD delivers full 1080p Video via an HDMI connector, and via VGA connector – and can deliver both simultaneously. That means that you can have HD Monitors at numerous locations throughout your site.

The Auto-HD sports a new user friendly Menu structure that is really simple to navigate, and allows both Smart Search and Event Searches of the archived footage. The Auto-HD Series also has dual RS-485 Ports so that it is much easier to connect cameras that have OSD Menus, PTZ cameras, and PTZ Controllers to the system without having to twist all of the lines together. The Auto-HD DVR’s also can sense if you have or need an “end-of-line” resistor in a PTZ string, and can also alert you if a camera is being tampered with.

One of the newest features that we have included in the Auto-HD Series, is a Equalizer, or Booster for each video channel. So if any camera has a weak signal or is over-modulating, the Equalizer system will either boost the signal or tone the signal down so that it more closely matches all of the adjacent channels. In the past, and with most other DVR’s, a weak signal can be problematic and cause all types of problems. Now the Auto-HD DVR makes these issues a non-event.

To accommodate the huge amount of data that is being transferred across the network when accessing Live or Recorded Video, we have included a Gigabit Ethernet Port to allow as much data as your network can handle, or can be throttled back to give you faster video remotely via smaller resolutions, but the DVR will still be recording the video at the original chosen resolution for each channel. This allows for tailoring the data streams to give you exactly what you need on-site or remotely to your phone or iPad.

If you have a store that has cash registers, the Auto-HD can be configured to interface with the registers to show you transactions on-screen for each channel.

There are so many features, we literally cannot list them all here, but here are just a few more that may interest you: Alarm Alert Notification (on your phone or other device), Various Network Software for remote viewing (VMS, RMS, CMS, Web Viewer, Mac Viewer and Phone apps), Two-Way Audio Communication between the DVR site and a person viewing remotely, Many types of recording (External Sensor, Motion, Audio Detection, Text/POS, etc.), RAID Hard Drive array support (Auto-HD/3 & 6), Coaxitron Support, etc.

Auto-HD Universal DVR

Auto-HD/2      Auto-HD/3      Auto-HD/6

Operating System Embedded Linux
Built in flash memory
Language Chinese, Chinese(S), Dutch, English, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Latvian, Persian, Polish, Portuguese, Russian, Spanish, Sweden, Turkish
Time Accuracy 5ppm (12.5 Sec/Month)
Time Sync. NTP, GMT, DST
User 15 Users (Admin., User1 ~ User14)
Access Front button, Mouse, Remote Control, Network, Key controller
Hexaplex Live monitoring, Recording, Playback, Backup, Network, Setup

Auto-HD/2      Auto-HD/3      Auto-HD/6

System NTSC / PAL – Config switch
Input 16 / 8 BNC
Output 1 HDMI, 1 VGA, 1 BNC
loop NA
Spot 1 BNC

Auto-HD/2      Auto-HD/3      Auto-HD/6

Input 16, 8, RCA
Output 1 HDMI, 1 RCA

Auto-HD/2      Auto-HD/3      Auto-HD/6

Compression H.264
Speed 1920 x 1080p real-time recording (480fps (30fps each 16 ch) / 240fps (30fps each 8 ch)
Resolution ★1080p, 720p, 960H (960×480), D1 (720×480), CIF (352×240)
Mode Schedule
Event Sensor, Motion, Audio, text
Quality 5 Levels
Bit Rate 512kbps – 5Mbps/Ch, Adjustable

Auto-HD/2      Auto-HD/3      Auto-HD/6

Compression G.711u
Sampling Rate 8KHz
Bit Rate 64Kbps

Auto-HD/2      Auto-HD/3      Auto-HD/6

Search Go to first rec. time, Go to last rec. time, Go to last search time, Calendar, Log viewer, Smart search, Multi-time & day search, Event search
Mode Event only playback, Backward, Pause, Frame by frame, Panorama Speed up (x1 ~ x32, x300)

Auto-HD/2      Auto-HD/3      Auto-HD/6

Interface Ethernet 10/100/1G
Compression H.264 or JPEG
Speed Max. 720p 10 fps/ch
Resolution Max. 1280 x 720p
Mode Bandwidth control

Auto-HD/6

Auto-HD/3

Auto-HD/2

Interface USB2.0, DVD, Network USB2.0, DVD, Network USB2.0, Network
Format Video clip (Backup viewer), JPEG Still Image, Log List,Setup Data Video clip (Backup viewer), JPEG Still Image, Log List,Setup Data Video clip (Backup viewer), JPEG Still Image, Log List,Setup Data

Auto-HD/2      Auto-HD/3      Auto-HD/6

Pre/Post-Alarm 5sec / 5sec~5min
Motion Grid 32 x 24 (NTSC/PAL)
Alarm Action E-mail, Channel Popup, Buzzer, Relay, PTZ Preset, Spot, Remote CMS, Front LED
Input / Output 4/1 – NC/NO

Auto-HD/2      Auto-HD/3      Auto-HD/6

HDMI ★ Full HD, XGA
VGA Full HD, XGA
TV SDTV(720×480/576)
Mode 16/9/4/1/SEQ – LIVE, 16/9/4/1 – P.B
Camera Adjust SD Cameras Only
TV Adjust N/A
Camera Title Name English : 20 characters – Chinese, Japanese, Korean : 10 characters

Auto-HD/6      Auto-HD/3      Auto-HD/2

PTZ / Keyboard 2 RS 485 – Terminal Block
ATM / POS RS 232C – Terminal Block, Ethernet POS

Auto-HD/6

Auto-HD/3

Auto-HD/2

Primary 6 HDD 3 HDD 2 HDD or 1 HDD + 1 eSATA
External 2 eSATA 1 eSATA 2 HDD or 1 HDD + 1 eSATA
CD/DVD Yes Yes N/A

Auto-HD/6

Auto-HD/3

Auto-HD/2

Jog-shuttle Yes N/A N/A
H/W RAID ★ RAID 1/5 Options ★ RAID 1/5 Options N/A

Auto-HD/6      Auto-HD/3      Auto-HD/2

Universal Yes
EOL Yes
Coaxitron N/A
Privacy Zone N/A
Covert Channel Yes
Digital Zoom x1 ~ x16
Watermarking Yes
Two-way Audio Yes
Detection / Search Motion, Sensor, Audio, Text
Fan Fail Yes
E-mail 5 User with still image
Capture Full HD, XGA
iSCS Recording ★ Yes ?
DDNS, DHCP, UPNP Yes
CMS, VMS, RMS Windows
Smart Phone (3G/4G) Android, Apple
Mac Viewer ★ Apple Mac OS
Auto-HD/6 Auto-HD/3 Auto-HD/2
Power Supply 90 – 250V, 50/60Hz 12V/5A – Level 5 12V/5A – Level 5
Consumption 80Watts 60Watts 40Watts
Operating Temp. 40° ~ 104° F 40° ~ 104° F 40° ~ 104° F
Humidity 10 ~ 80% 10 ~ 80% 10 ~ 80%
Weight w/o HDD 17.7 lbs 8.9 lbs 6.7 lbs
Dimension 17.32″(W) x 16.93″(D) x 3.46″(H) 16.93″(W) x 10.63″(D) x 3.38″(H) 13.40″(W) x 11.80″(D) x 2.30″(H)
Certification CE, FCC, RoHS Compliance CE, FCC, RoHS Compliance CE, FCC, RoHS Compliance

DVR Recording Times

The table below shows recording time of the Auto-HD DVR’s using a 2tb Hard Storage and various recording times per camera per day.
Based on 1080p Video Resolution and 30 FPS Recording speed.
Calculations are at Largest Resolution & all settings at Maximum.
Lower Resolutions and slower frame rates will result in longer recording times, but may effect video quality.


2tb Hard Storage Auto-HD
8 Channel
Amount of video storage
Auto-HD
16 Channel
Amount of video storage
File Over write will start with the first file recorded.
To Calculate additional storage, multiply drive size by above recording times
4 Hours of Motion Based Recording per day = 25 Days, 20 hours 12 Days, 16 hours
8 Hours of Motion Based Recording per day = 12 Days, 22 hours 6 Days, 8 hours
12 Hours of Motion Based Recording per day = 8 Days, 14 hours 4 Days, 5 hours
Continuous Recording = 4 Days, 7 Hours 2 Days, 2Hours

Auto-HD DVR Dimensions & Back Views

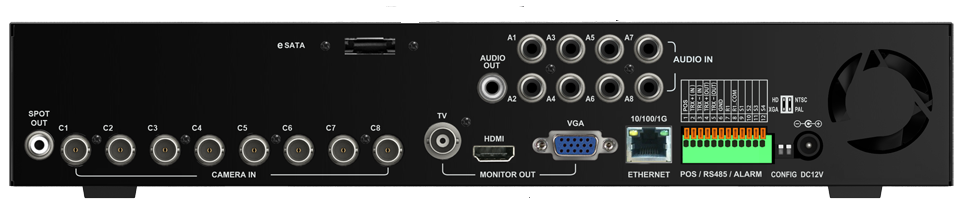

Auto-HD/2 Back View

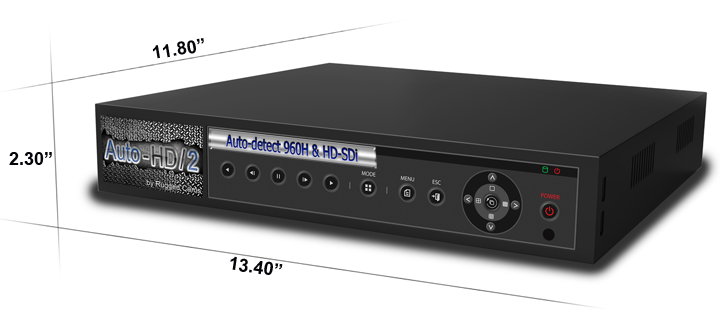

Auto-HD/2 Dimensions


Auto-HD/3 Back View

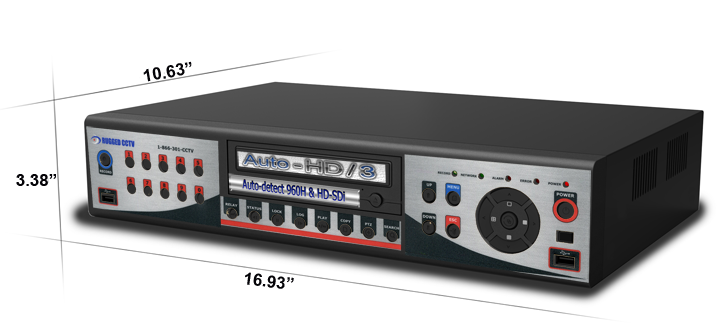

Auto-HD/3 Dimensions


Auto-HD/6 Back View


Auto-HD/6 Dimensions
